Safety, Excellence, Efficiency
Low-voltage forklift system
Operating temperature: -40°C to +85°C;
Natural cooling technology;
PMSM delivers high power density in a compact design;
Wide high-efficiency range with optimized system efficiency;
Adopting a resolver as the speed sensor;
Higher control accuracy and faster system response;
Mechanical shock 50g, mechanical vibration 6g;
IP67 Certified;
Class H insulation.
High pressure forklift system
Automotive-grade motor and electronic control system features high vibration/shock resistance, IP67 protection, salt spray resistance, and wide-temperature operation;
Algorithm-driven control system enables fast, precise response for complex multi-condition operations.
Wide high-efficiency operating range, superior efficiency performance.

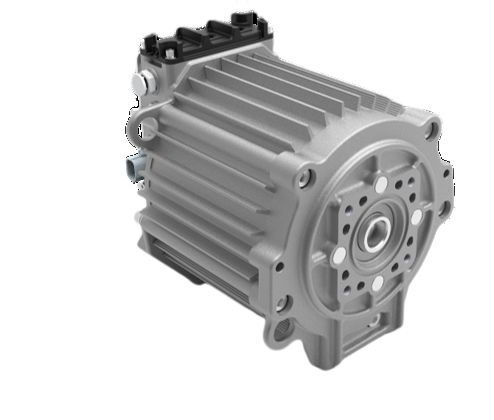

| Product Name | Traction Motor |
| Rated Voltage (V) | 80-309 |
| Rated Power (kW) | 6-54.5 |
| Rated Torque (N·m) | 12.9-65.1 |
| Rated Speed (rpm) | 4000-11000 |
| Peak Power (kW) | 12-100 |
| Peak Torque (N·m) | 86-580 |
| Peak Speed (rpm) | 4600-11000 |
| Rated Current (A) | 80-200 |
| Peak Current (A) | 170-540 |
| Cooling Method | Natural cooling/Water cooling |
| Protection Level | IP67 |
