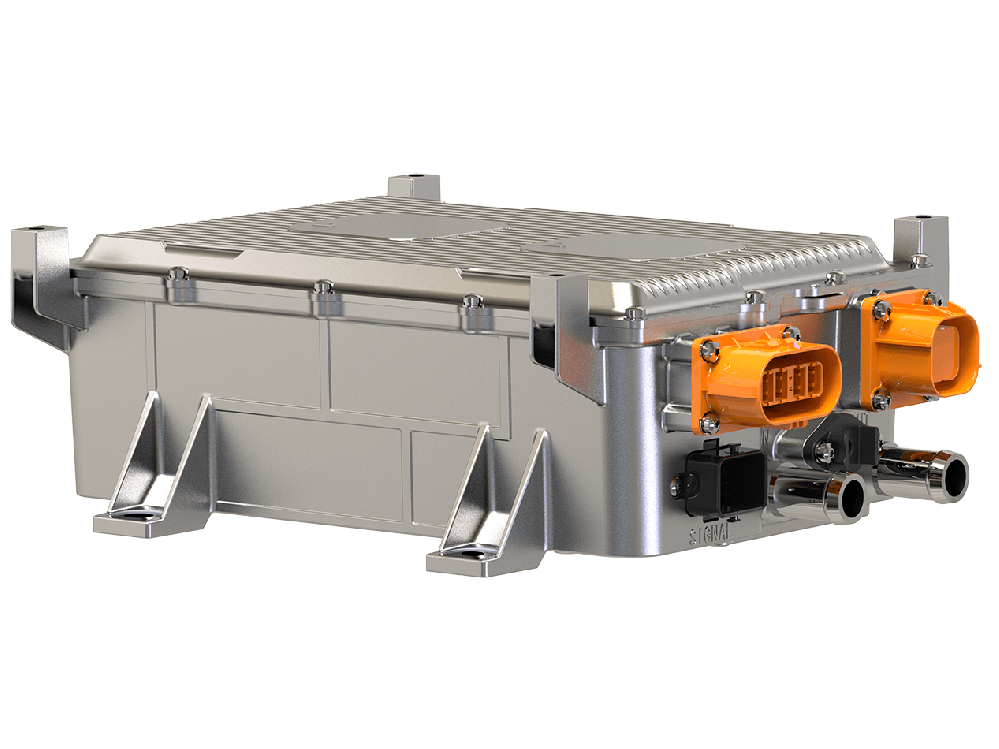

11kW Power Electric Unit

Ultimate simplicity, reliability, cost-efficiency;
Compliant with automotive-grade EMC standards;
Monolithic die-cast housing with 3D U-shaped coolant channels for enhanced thermal management

OBC charging mode
AC input voltage/frequency range	85～265 Vac @1φ304-456 Vac@3φ45Hz - 65Hz
Maximum input current	16A@3-phase, 32A@1-phase
Power factor	≥0.98
DC output voltage range	200- 450Vdc
Rated output power	≥6.6kW @1φ；≥9.9kW @3φ
Maximum output current	31A
Average efficiency	95%@3-phase；94%@1-phase
OBC Discharge Mode
DC input voltage range	250-450Vdc
AC output voltage range	220Vac±5%
Rated output power	6.6kW
Maximum output current	30A
Average efficiency	≥93%
DCDC Buck Mode
DC input voltage range	200-450Vdc
Maximum input current	12A
DC output voltage range	9-16Vdc
Rated output voltage	14±0.2Vdc
Rated output power	3.0kW
Maximum output current	215A
Weighted efficiency	92%
