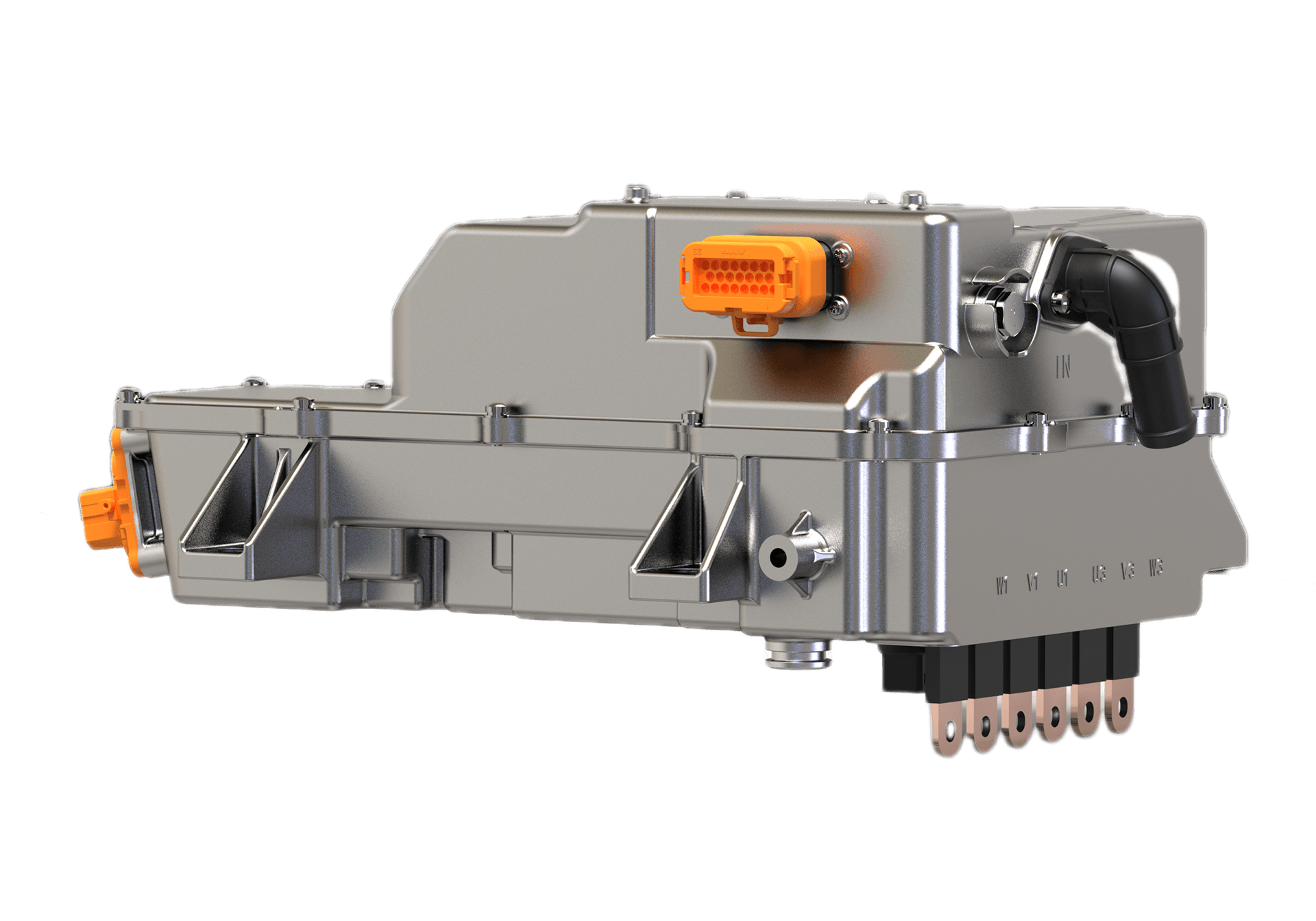

Hybrid Inverter/HC1646WV01

Utilized IGBT discrete parallel technology;
Optimized the current sharing of single-tube IGBTs with stacked busbar technology;
Variable frequency control technology from 2K to 12K;
High power density, significantly reducing the horizontal area;
Customized software solutions tailored to OEMs unique requirements.

Model No.	DM3946 P1	DM3946 P3
Rated Input Voltage (VDC)	300 - 400	300 - 400
Input Voltage Range (VDC)	200 - 500	200 - 500
30s Peak Current (Arms)	280	500
EMC	Class 3	Class 3
Cooling method	Water cooling	Water cooling
Protection class	IP67	IP67
Operating ambient temperature	-40°C - 85°C	-40°C - 85°C
