Safety, Excellence, Efficiency

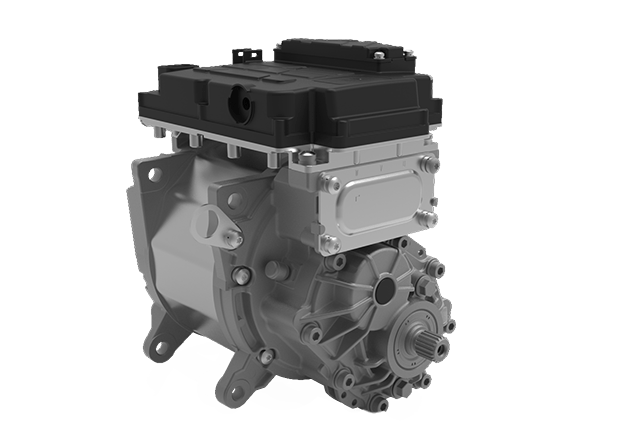

Main Features of Electric Drive System:
The motor and electric control system adopt mature automotive-grade technical solutions, automotive-grade components, with high vibration resistance, high mechanical shock resistance, protection rating of IP67, salt spray resistance, and strong environmental adaptability.
The electric control system uses advanced algorithm technology, featuring fast system response, high control accuracy, and capable of meeting complex working requirements under various conditions.
The system has a wide high-efficiency range, with a maximum system efficiency of up to 93% and an average NEDC efficiency of 85%.
| Model | Motor |
Rated Voltage (V) | 360 |
Rated Power (kW) | 35 |
Rated Torque (N·m) | 70 |
Rated Speed (rpm) | 4750 |
Peak Power (kW) | 70(30S) |
Peak Torque (N·m) | 200(30S) |
Peak Speed (rpm) | 10000 |
Rated Current (A) | 180 |
Peak Current (A) | 400 |
Duty Cycle | S9 |
Cooling Method | Water-cooled |
| Protection Rating | IP67 |
