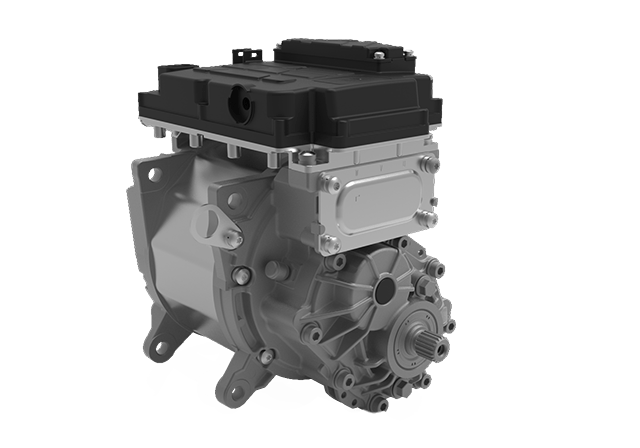

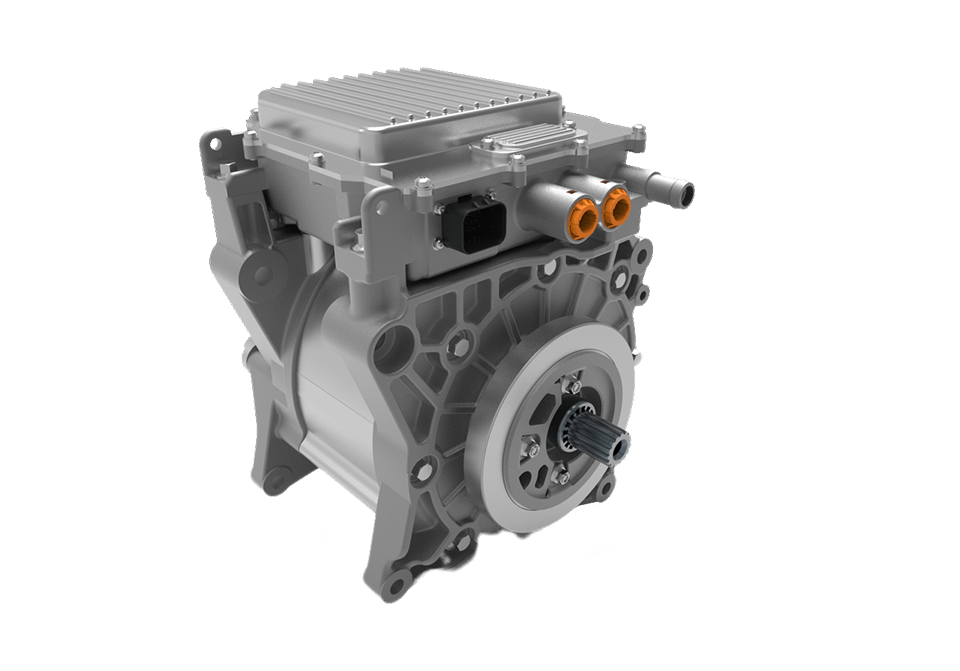

E-drive system

Features:
Automotive-grade motor and electronic control system features high vibration/shock resistance, IP67 protection, salt spray resistance, and wide-temperature operation;
Algorithm-driven control system enables fast, precise response for complex multi-condition operations;
Wide high-efficiency operating range with superior performance; NEDC average efficiency of 84%
Component:
Permanent magnet motor
Reducer
MCU

Voltage platform (DC/V)	Rated power kW	Peak power kW	Rated torque (N·m)	Peak torque (N·m)	Rated speed (rpm)	Maximum speed (rpm)
96	11	20(30S)	17.5	55(30S)	6000	10000
Rated current (A)	Peak current (A)	Cooling method	Working system	Protection class	Insulation class	Weight (KG)
125	250	Water - cooled	S9	IP67	H	≤20kg
Reducer speed ratio	Rated torque at reducer output	Peak torque at reducer output	Rated speed at reducer output	Maximum speed at reducer output
3.318	58 (N·m)	182(30S) (N·m)	1808 (rpm)	3013 (rpm)
